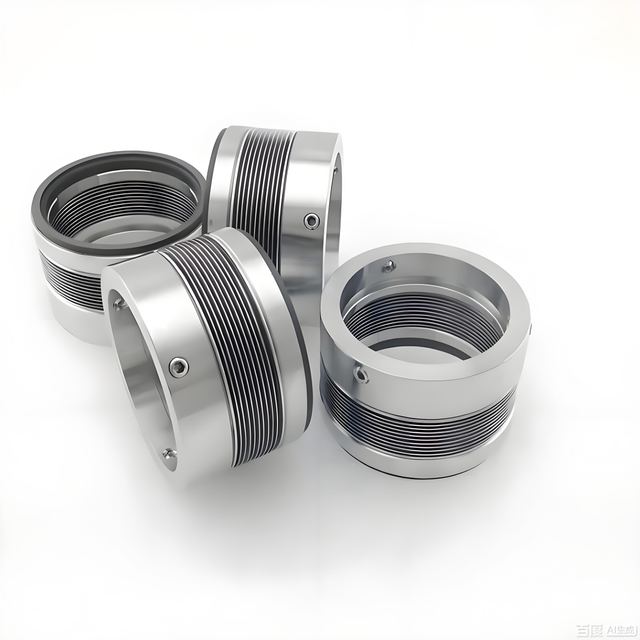

Metal Bellow Mechanical Seal MFL85N John Crane Pump Shaft Seals
Model MFL85N
Overview
Metal Bellow Mechanical Seal MFL85N John Crane Pump Shaft Seals supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001; Material SIC SIC FKM; Function For Oil Pump, Water Pump; Certificate ISO9001. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 |
|---|---|
| Material | SIC SIC FKM |
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Type | Metal Bellows Seal MFL85N |
| Size | Inch As Drawing |
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 10 bar |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
