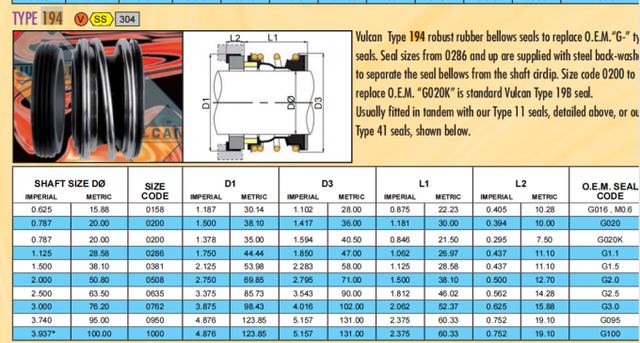

Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM
Model Vulcan Type 194
Overview
Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001; Function For Oil Pump, Water Pump; Certificate ISO9001; Type Burgmann MG1 Seal. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 |
|---|---|
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Type | Burgmann MG1 Seal |
| Size | 12-40MM |
| T emperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 10 bar |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
