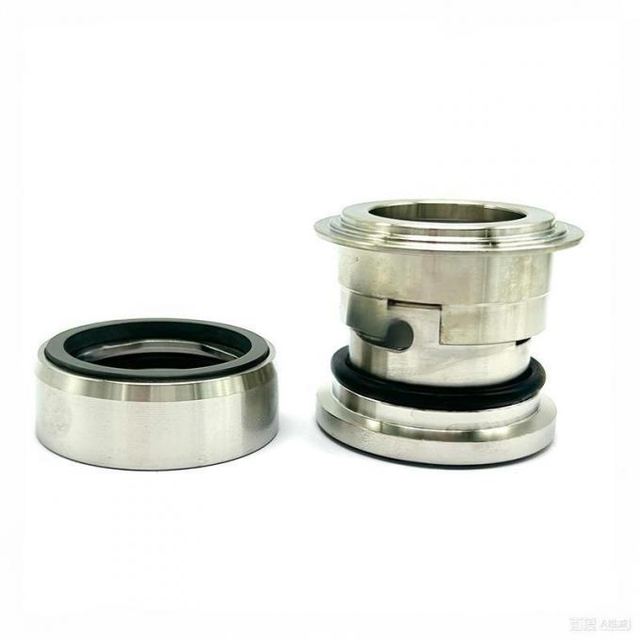

Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304
Model SNS1
Overview
Mechanical Seal SNS1 30MM 40MM 50MM 60MM For SNSS A Type Pumps Silicon Carbide/VIT/SS304 supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001; Type Single Spring Mechanical Seal SNS1; Function For Oil Pump, Water Pump; Certificate ISO9001. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 |
|---|---|
| Type | Single Spring Mechanical Seal SNS1 |
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Standard Or Nonstand | Standard Single Spring Seal SNS1 |
| Style | Mechanical Seal SNS1 |
| Size | 30MM 40MM 50MM 60MM |
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 6 bar |
| Speed | Up to 10 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Water Pump Shaft Seal | Sulzer A type pumps |
| Secondary Seal | Fluorocarbon Rubber(FKM),Nitrile(NBR),Ethylene Propylene(EPDM) |
| Applications | Clean Water |
| Performance Capabilities | Temperature |
