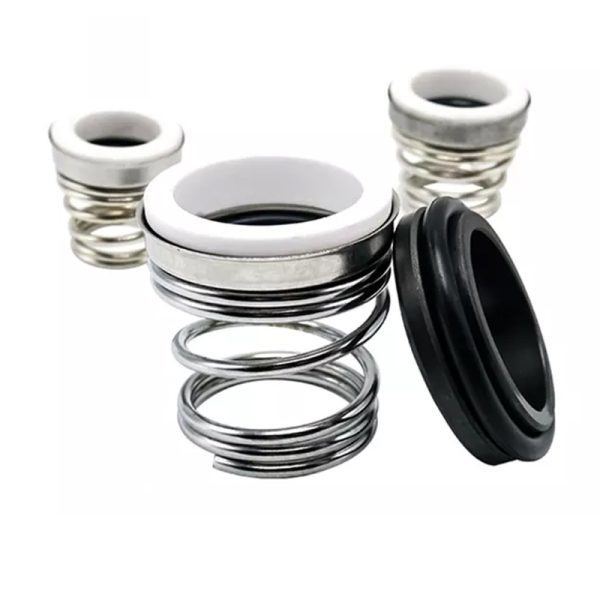

Mechanical Seal 155 Burgmann BT-FN Replace AESSEAL T04 And Roten 3 Seal
Overview
Mechanical Seal 155 Burgmann BT-FN Replace AESSEAL T04 And Roten 3 Seal supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001; Spring Material SS304,SS316,AM350, Hast C; Certificate CE ISO9001; Type Burgmann BT-FN Seal. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 |
|---|---|
| Spring Material | SS304,SS316,AM350, Hast C |
| Certificate | CE ISO9001 |
| Type | Burgmann BT-FN Seal |
| Standard Or Nonstand | Industrial Mechanical Seals Standard |
| Size | 12-40MM |
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 10 bar |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Ceramic, SiC, TC |
| Seat | Carbon, SiC, TC |
| Elastomer | NBR, EPDM, etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Secondary Seal | NBR, EPDM, FKM |
