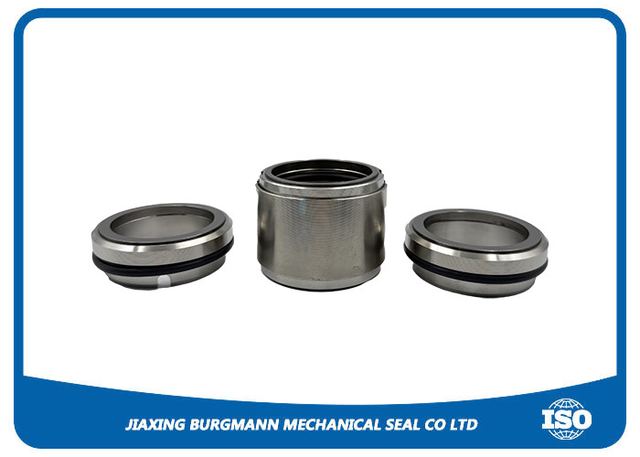

M74D Double Seal Face Industrial Pump Seal Replace Burgmann
Model M74D
Overview
M74D Double Seal Face Industrial Pump Seal Replace Burgmann supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Application Replace Eagle Burgmann; Size 14~100mm; Pressure Up To 1.5Mpa; Temperature -20°C To +180°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Application | Replace Eagle Burgmann |
|---|---|
| Size | 14~100mm |
| Pressure | Up To 1.5Mpa |
| Temperature | -20°C To +180°C |
| Metal Parts | SS304,SS316,904L, Titan |
| Shaft diameter | 14~100mm |
| Slidingvelocity | 25m/s |
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316, Titan, 904L |
| Stationary Ring | Car / SIC /TC/Cer |
| Certification | FDA certificate |
| Typical Applications | Chemical Process Pumps |
| Operating Limited | Shaft diameter |
| Material | Rotary Ring |
