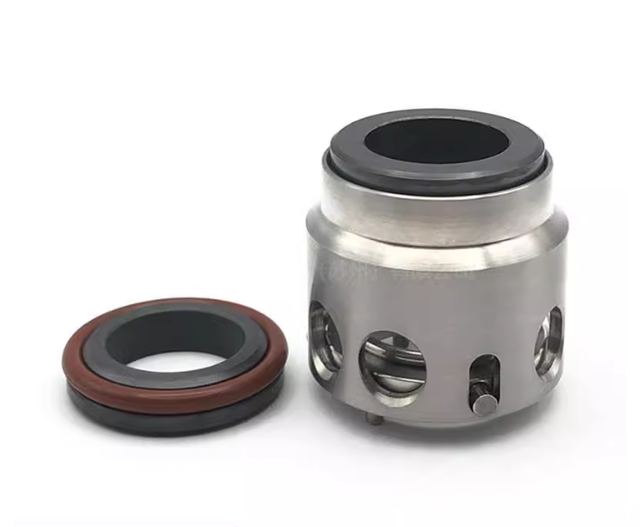

Lowara-22-X Mechanical Seals With Hole Shaft Size 22mm For SV Series Pumps Material SIC/CAR/VIT
Overview
Lowara-22-X Mechanical Seals With Hole Shaft Size 22mm For SV Series Pumps Material SIC/CAR/VIT supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification ISO9001; Material SIC SIC FKM; Function For Oil Pump, Water Pump; Type For Lowara Pumps. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Material | SIC SIC FKM |
| Function | For Oil Pump, Water Pump |
| Type | For Lowara Pumps |
| Style | Mechanical Seal |
| Application | Machanical Seal For Lowara Pump |
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 17 bar |
| Speed | Up to 25 m/s |
| End play/axial float allowance | ±0.1mm |
| Size | 22mm |
| Face | Carbon, SiC, TC |
| Seat | Carbon, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Seal type | Material |
| Shaft diameter | vendor code |
| Secondary Seal | NBR, EPDM, FKM, PTFE |
