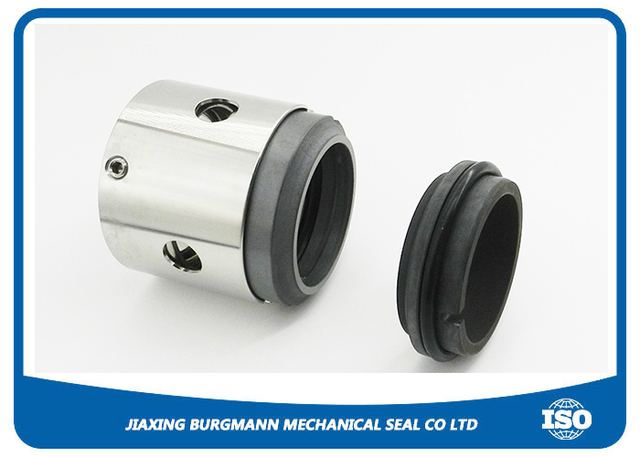

H76 Series Pumps Seal
Model GNZ
Overview
H76 Series Pumps Seal supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Size 14 mm – 100 mm (0.55″ – 4.00″); Application Pumps Seal; Metal Parts SS304, SS316, SS316L, Hastelloy C; Temperature –50 °C To +220 °C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 14 mm – 100 mm (0.55″ – 4.00″) |
|---|---|
| Application | Pumps Seal |
| Metal Parts | SS304, SS316, SS316L, Hastelloy C |
| Temperature | –50 °C To +220 °C |
| Pressure | ≤ 4.0 MPa (580 psi / 40 bar) |
| Shaft Diameter Range | 14 mm - 100 mm (0.55″ - 4.00″) |
| Max Pressure | ≤ 4.0 MPa (580 psi / 40 bar) |
| Linear Velocity | ≤ 20 m/s (4,000 fpm) |
| Balance Type | Balanced design |
| Spring Type | Multiple independent springs (circumferential arrangement) |
| Direction of Rotation | Independent of rotation direction |
| International Standards | DIN 24960, ISO 3069, ANSI, API 682 |
| Flush Plans | API Plan 11, 21, 32, 52, 53A/B/C |
| Certification | FDA certificate |
