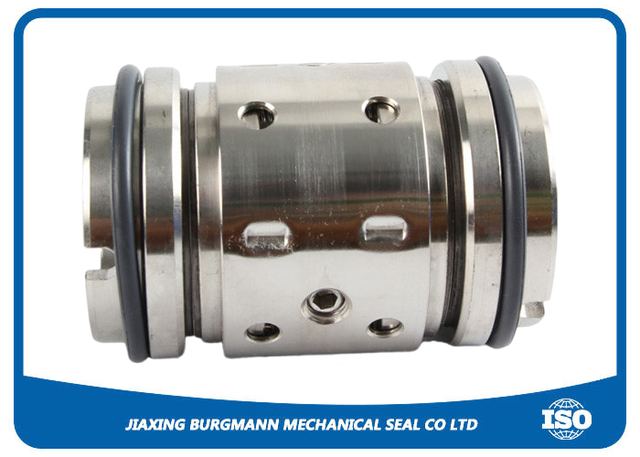

Submersible Motors Seal 202UU Water Alkali Pump Seal
Model 202UU
Overview
Submersible Motors Seal 202UU Water Alkali Pump Seal supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Water Pumps. Key published specifications: Size 20~80mm; Application Submersible Motors Seal; Pressure 0~1.2Mpa; Temperature -30°C To 180°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 20~80mm |
|---|---|
| Application | Submersible Motors Seal |
| Pressure | 0~1.2Mpa |
| Temperature | -30°C To 180°C |
| Speeds | 3000r/mins |
| Metal Parts | SS304,SS316,904L, Titan |
| Shaft Diameter | 20-80mm |
| Sliding Velocity | 3000 rpm |
| Component | Materials |
| O-Ring | EPDM, NBR, AFLAS, Kalrez, PTFE |
| Spring and Metal Parts | SUS304, SUS316, Titanium, 904L |
| Certification | FDA certificate |
