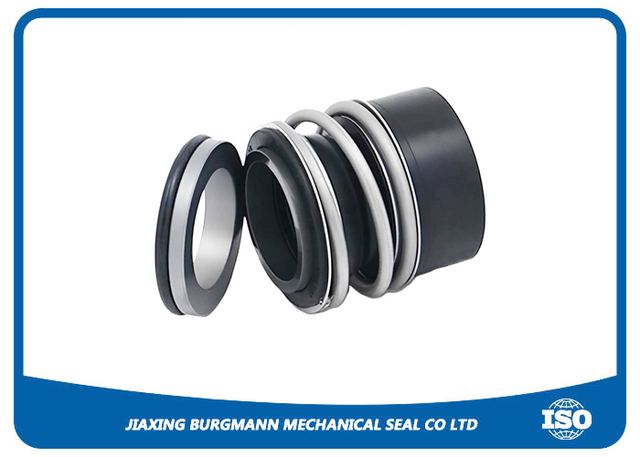

MG13 Rubber Bellows Seal
Model MG13
Overview
MG13 Rubber Bellows Seal supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Size 10~120mm; Pressure Up To 1.2Mpa; Temperature -20°C To +120°C; Speeds 10m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 10~120mm |
|---|---|
| Pressure | Up To 1.2Mpa |
| Temperature | -20°C To +120°C |
| Speeds | 10m/s |
| Metal Parts | SS304,SS316,904L, Titan |
| Shaft diameter | 10~120mm |
| Slidingvelocity | 10m/s |
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316, Titan, 904L |
| Stationary Ring | Car / SIC /TC/Cer |
| Certification | FDA certificate |
| Operating Limited | Shaft diameter |
| Material | Rotary Ring |
| Application | General Purpose Water Pumps |
