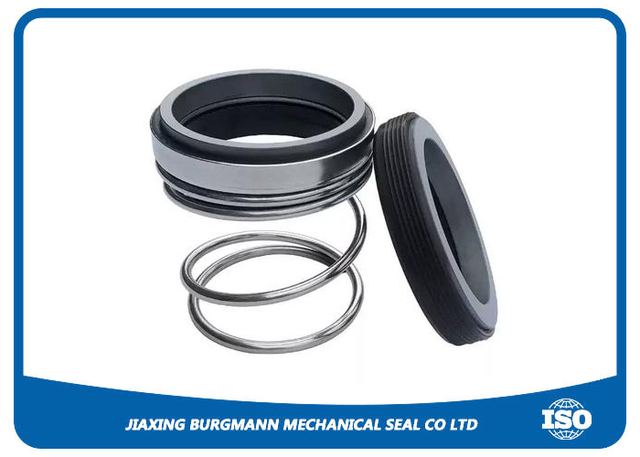

MG9 Rubber Bellows Pump Seal
Model MG9
Overview
MG9 Rubber Bellows Pump Seal supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Size 8~50mm; Application Water Pumps Seal; Pressure Up To 1.2Mpa; Temperature -10°C To +140°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 8~50mm |
|---|---|
| Application | Water Pumps Seal |
| Pressure | Up To 1.2Mpa |
| Temperature | -10°C To +140°C |
| Speeds | 10m/s |
| Material Option | Optimal Service Conditions |
| Media to Avoid | Procurement Consideration |
| Shaft diameter | 10~100mm |
| Sliding velocity | 10m/s |
| Component | Available Materials |
| O-Ring | EPDM, NBR, AFLAS, Kalrez, PTFE |
| Spring and Metal Parts | SUS304, SUS316 |
| Certification | FDA certificate |
