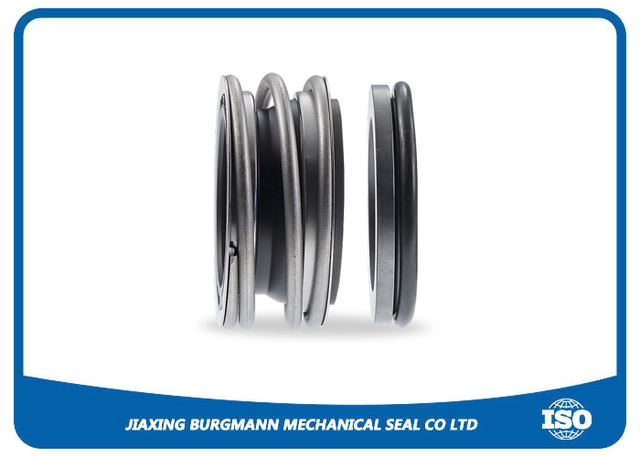

EMG1 Rubber Bellows Seal
Model MG1
Overview
EMG1 Rubber Bellows Seal supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Metal Parts Stainless Steel (e.g., AISI 304, 316); Application Submerged Pump Seal; Pressure ≤1.2Mpa; Typical Face Materials Antimony/Resin-Impregnated Carbon, Silicon Carbide (eSiC-Q7), Tungsten Carbide. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Metal Parts | Stainless Steel (e.g., AISI 304, 316) |
|---|---|
| Application | Submerged Pump Seal |
| Pressure | ≤1.2Mpa |
| Typical Face Materials | Antimony/Resin-Impregnated Carbon, Silicon Carbide (eSiC-Q7), Tungsten Carbide |
| Temperature | -20°C to 120°C |
| Speed | ≤ 10 m/s |
| Certification | FDA and ISO 9001:2008 |
