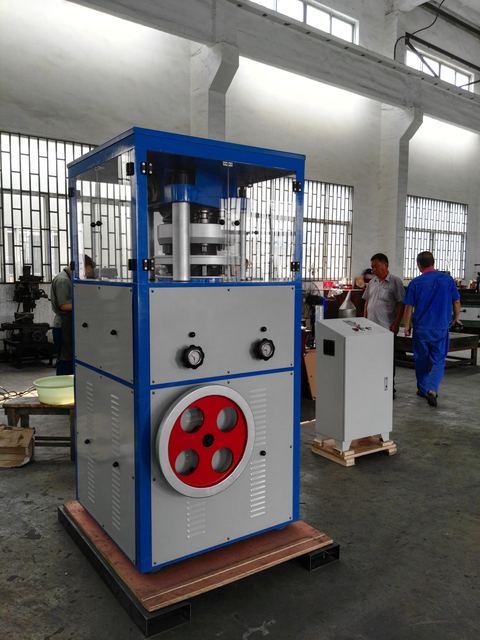

Large Salt Tablet Press Machine High Working Pressure 900*900*2200 Mm
Model ZP40-11
Overview
Large Salt Tablet Press Machine High Working Pressure 900*900*2200 Mm, listed by Changzhou Chenguang Machinery Co., Ltd in Changzhou, Jiangsu. Published figures include max diameter 40mm, style Large Rotary Tablet Press and machine weight 2800kg.
Technical specifications
| Max Diameter | 40mm |
|---|---|
| Style | Large Rotary Tablet Press |
| Machine Weight | 2800kg |
| Machine Size | 900*900*2200 Mm |
| Application | Tablet Production |
| Max Working Pressure | 400Kn |
| Model | ZP40-11 |
| Dies | 11sets |
| Max pressure | 400Kn |
| Dia of Tablet | 20-40mm |
| Depth of Fill | 43mm |
| Thickness of Tablet | 15-22mm |
| Turret Speed | 1-15r/min |
| Motor | 7.5Kw 3P380v/50hz(customized) |
| Overall Size | 900*900*2200 mm |
| Net Weight | 2800kg |
| Request A Quote | Send |
| pressure | 80ton |
| capacity | 5400pcs/h |
| salt weight | 15G |
| salt size | 25mm diameter 15-20mm height |
| machine pressure | 600kn |
| type | two sides injection tablet |
