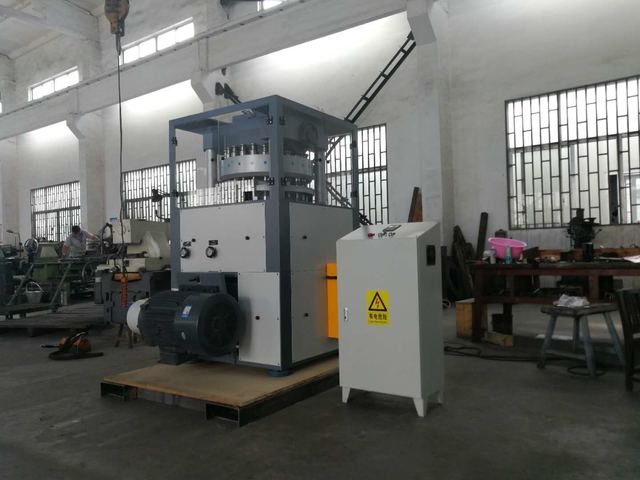

Automatic Chlorine Turrets Press Compression Machine High Speed
Model ZP40-9
Overview
Automatic Chlorine Turrets Press Compression Machine High Speed supplied by Changzhou Chenguang Machinery Co., Ltd. Key published specifications: Max Diameter 60mm; Style TCCA Tablet Press Machine; Machine Weight 2800kg; Machine Size 900*900*2200 Mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max Diameter | 60mm |
|---|---|
| Style | TCCA Tablet Press Machine |
| Machine Weight | 2800kg |
| Machine Size | 900*900*2200 Mm |
| Application | Tablet Production |
| Max Working Pressure | 400 Kn |
| Model | ZP40-9 |
| Dies | 9sets |
| Dia of Tablet | 30-60mm |
| Max Depth of Fill | 43mm |
| Thickness of Tablet | 15-24mm |
| Turret Speed | 1-15r/min |
| Max Production Capacity | 8000pcs/h |
| Motor | 7.5 Kw 380v/50hz/3p |
| Overall Size | 900*900*2200 mm |
| Net Weight | 2800kg |
