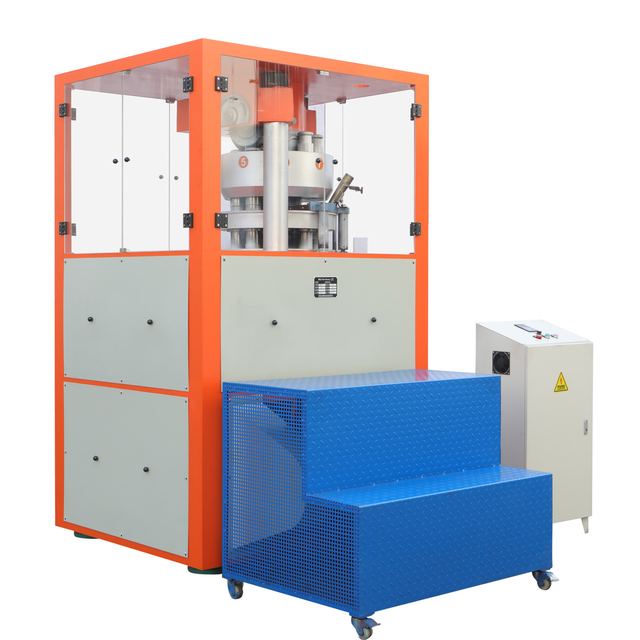

350g Rotary Tablet Press
Model ZP100-9C
Overview
350g Rotary Tablet Press supplied by Changzhou Chenguang Machinery Co., Ltd. Key published specifications: Certification CE SGS; Application 300g 350g Big Tablets; Mold Material Titanium Alloy; Motor 45Kw. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE SGS |
|---|---|
| Application | 300g 350g Big Tablets |
| Mold Material | Titanium Alloy |
| Motor | 45Kw |
| Speed | Adjustable By VFD |
| Weight | 7000kg |
| Depth Of Fill | 90mm |
| Product Diameter | Max 80mm |
| Pressure | Max 1000kn |
| Certificate | CE,SGS |
| Model | ZP100-9C |
| Dies | 9 sets |
| Max main pressure | 1000 Kn |
| Max Dia of Tablet | 80 mm |
| max Thickness of Tablet | 54 mm |
| Turret Speed | 1--10r/min |
| Max Production Capacity | 1-5400 pcs/h(adjustable) |
| Overall Size(with hopper) | 2200×1600×2950mm |
| Net Weight | 7000kg |
| Request A Quote | Send |
| Max Diameter | 60mm |
| Machine Weight | 2800kg |
| Machine size | 900*900*2200 mm |
| type | mechnical rotary press machine |
