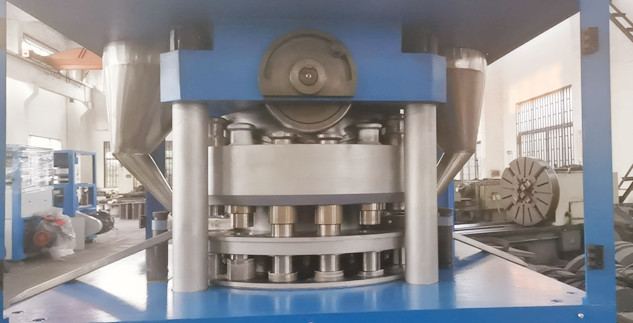

Tablet Tablet Production Rotary Press Machine 25mm Max Dia
Model VFP17
Overview
Tablet Tablet Production Rotary Press Machine 25mm Max Dia supplied by Changzhou Chenguang Machinery Co., Ltd. Key published specifications: Max Diameter 25mm; Style TCCA Tablet Press Machine; Machine Weight 850kg; Machine Size 860*680*600 Mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max Diameter | 25mm |
|---|---|
| Style | TCCA Tablet Press Machine |
| Machine Weight | 850kg |
| Machine Size | 860*680*600 Mm |
| Application | Tablet Production |
| Max Working Pressure | 80 Kn |
| Model | VFP17 |
| Dies | 17sets |
| Max Pressure | 80Kn |
| Max Dia of Tablet | 15-25mm |
| Max Depth of Fill | 15-28mm |
| Max Thickness of Tablet | 5-14mm |
| Turret Speed | 1-18r/min |
| Production Capacity | D＜20mm:30000-40000 pcs/h 25mm≥D＞20mm:18000-20000pcs/h |
| Motor | 3.0kw 1430r/min |
| Frequency Inverter | 3.7kw |
| Net Weight | 850kg |
| Overall Size | 860*680*600 mm |
