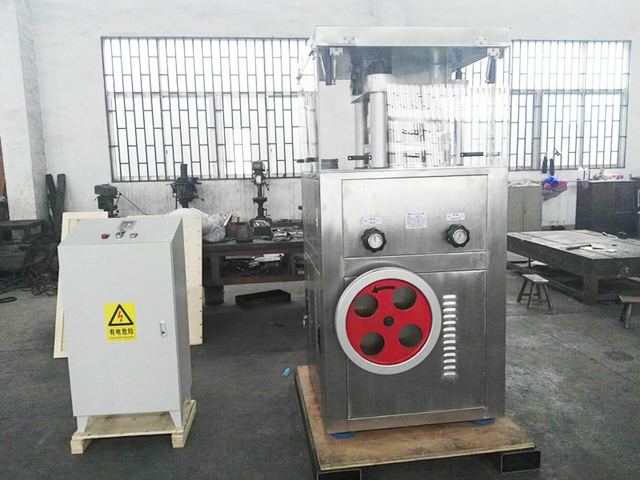

Large 7.5Kw Pharmaceutical Tablet Press Machine High Working Pressure
Model ZPS40-11
Overview
Large 7.5Kw Pharmaceutical Tablet Press Machine High Working Pressure supplied by Changzhou Chenguang Machinery Co., Ltd. Key published specifications: Certification CE SGS; Machine Capacity 9900pcs/h; Model ZP40-11; Dies 11sets. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE SGS |
|---|---|
| Machine Capacity | 9900pcs/h |
| Model | ZP40-11 |
| Dies | 11sets |
| Max pressure | 400Kn |
| Dia of Tablet | 20-40mm |
| Depth of Fill | 43mm |
| Thickness of Tablet | 15-22mm |
| Turret Speed | 1-15r/min |
| Motor | 7.5Kw 3P380v/50hz(customized) |
| Overall Size | 900*900*2200 mm |
| Net Weight | 2800kg |
| Request A Quote | Send |
| Machine Pressure | 400kn |
| Diameter | 40mm |
| Type | rotary tablet press GMP |
| Machine material | stainless steel version |
| application | Tablet production |
| Max Diameter | 25mm |
| Machine Weight | 850kg |
| Machine size | 860*680*600 mm |
| weight | 1850kg |
