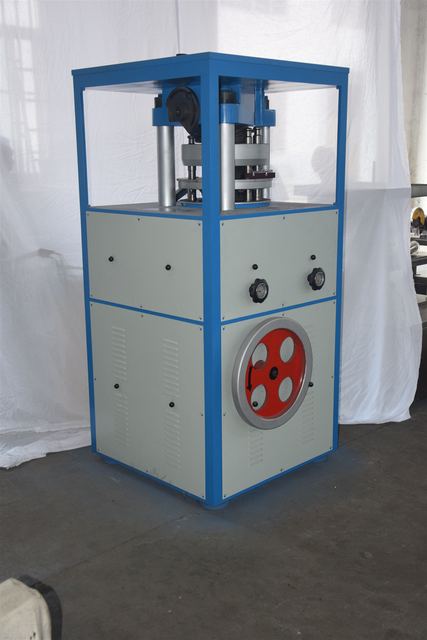

High Working Pressure Rotary Tablet Press Machine Powder Compaction Machine
Model ZP40-11
Overview
High Working Pressure Rotary Tablet Press Machine Powder Compaction Machine supplied by Changzhou Chenguang Machinery Co., Ltd. Key published specifications: Turret Speed 1-15r/min; Style Large Rotary Tablet Press; Machine Weight 2800kg; Machine Size 900*900*2200 Mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Turret Speed | 1-15r/min |
|---|---|
| Style | Large Rotary Tablet Press |
| Machine Weight | 2800kg |
| Machine Size | 900*900*2200 Mm |
| Application | Tablet Production |
| Max Working Pressure | 400Kn |
| Model | ZP40-11 |
| Dies | 11sets |
| Max pressure | 400Kn |
| Dia of Tablet | 20-40mm |
| Depth of Fill | 43mm |
| Thickness of Tablet | 15-22mm |
| Motor | 7.5Kw 3P380v/50hz(customized) |
| Overall Size | 900*900*2200 mm |
| Net Weight | 2800kg |
| Request A Quote | Send |
| Max Diameter | 60mm |
| Pressure | 400kn |
| type | mechnical rotary press machine |
| certificate | CE SGS |
