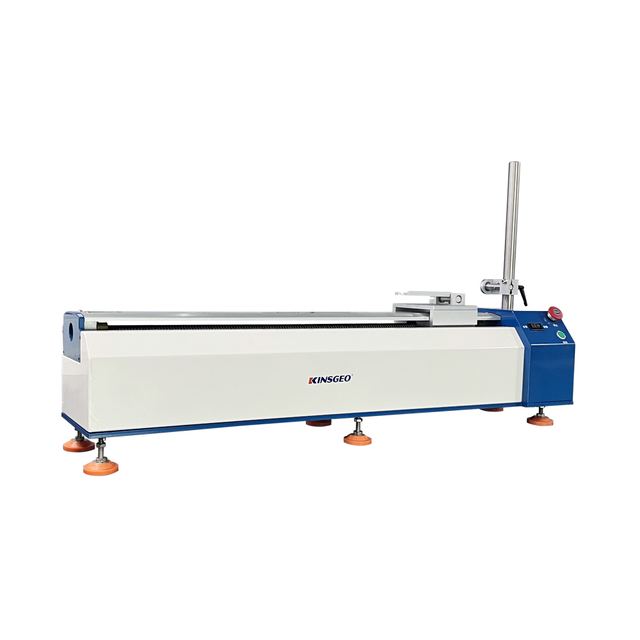

High-speed Horizontal Tape Peel Strength Tester

Model KJ-6089

High-speed Horizontal Tape Peel Strength Tester

Overview

GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong lists High-speed Horizontal Tape Peel Strength Tester. The listing gives power Electronic,220V, application Adhesive Tape Tester and standard CNS.4158,IEC68,GB/T.

Technical specifications

PowerElectronic,220V
ApplicationAdhesive Tape Tester
StandardCNS.4158,IEC68,GB/T
Measuring Range5kg,100N,10~1000KN
Load0~100kg
WeightAbout 145 Kg
Power SupplyAC220V 10% 50HZ
Dimention650*330*1730mm
FunctionAdhesive Tape Test Machine
Accuracy Class0.5 Class
Max Load1000N
Speed Of Test0.01-500mm/min
Control range of temperatureRT+10℃~200℃ （Customizable）
ControllerProgrammable LCD touch screen
Capacity1 , 2 , 5 , 10 kg
Accuracyclass 1 (0.5 optional)
Size (H*W*D) cm55*30*35cm
ModelKJ-1065
