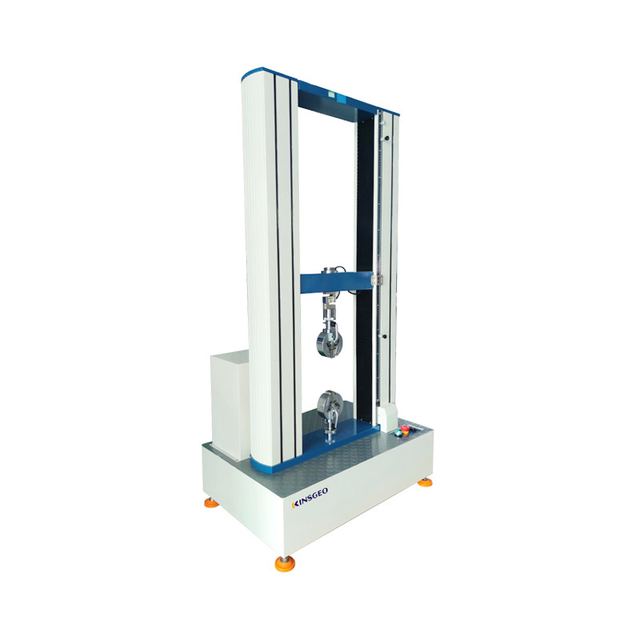

10kg Universal Testing Machine
Model KJ-1066
Overview
10kg Universal Testing Machine, listed under Universal Testing Machines by GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong. The listing gives power Electronic,AC220V 50Hz, weight 132kg and power supply 220V 50Hz.
Technical specifications
| Power | Electronic,AC220V 50Hz |
|---|---|
| Weight | 132kg |
| Power Supply | 220V 50Hz |
| Application | Steel,fiber,fabric,universal Tester |
| Standard | BS.EN.ASTM,ASTM E8/A370/ISO 75001 |
| Stroke | 650mm(excluding Clamp) |
| Test Space | 120mmMAX |
| Tester Resolution | Constant The Resolution |
| Effective Measuring Range | 0.2%~100%(1grade) /0.4%~100% (0.5 Grade) |
| Operation | LCD |
| Design Standards | ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7 |
| Model | KJ-1066 |
| Capacity | 1,2,5,10,20,50,100,200kg optional |
| Range of speed | 50～400mm/min adjustable,constant speed, 300mm/min |
| Dimention | (W×D×H)50×50×120cm |
| Optional accessories | stretcher, air clamp |
