Overview

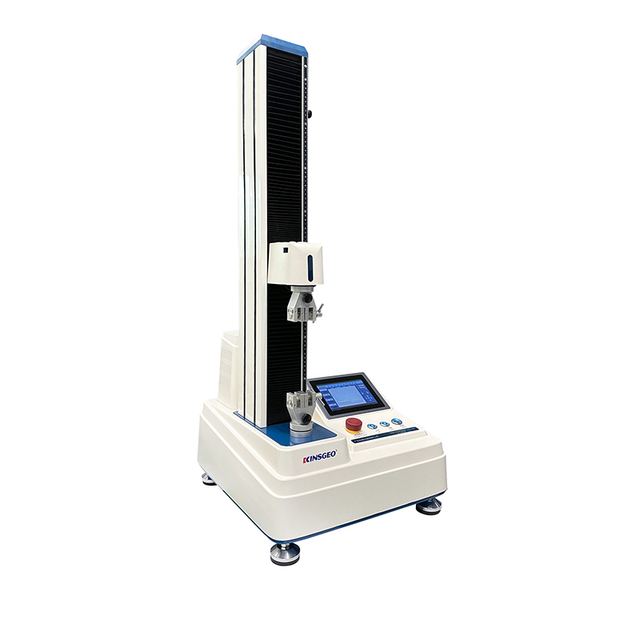

AC Motor 850mm UTM 2020 Universal Testing Machines supplied by GUANGDONG KEJIAN INSTRUMENT CO.,LTD. Listed under Servo Motor. Key published specifications: Certification CE,ISO; Capacity 1 , 2 , 5 , 10 Kg; Accuracy Class 1 (0.5 Optional); Weight 60kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE,ISO
Capacity	1 , 2 , 5 , 10 Kg
Accuracy	Class 1 (0.5 Optional)
Weight	60kg
Stroke	850 Mm (contain Clamps)
Capacity choice	1 , 2 , 5 , 10 Kg
Range of speed	0.01~500mm/min
Effective testing space	1200mmMAX
Operation method	Windows operation
Optional accessories	stretcher, clamp
Dimention	(W×D×H)58×58×125cm
Power	AC220V, 50/60Hz
Design standard	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Force protection	system setting
