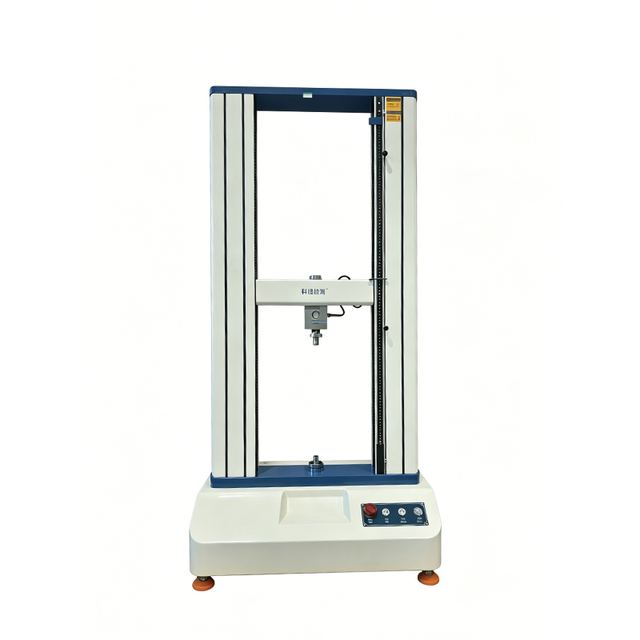

Cross Lap Shear Force Testing for Adhesive
Model KJ-1066A-N
Overview
Cross Lap Shear Force Testing for Adhesive, listed under Adhesives by GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong. Published figures include certification CE/ISO, power AC220V 50Hz and weight 135kg.
Technical specifications
| Certification | CE/ISO |
|---|---|
| Power | AC220V 50Hz |
| Weight | 135kg |
| Application | Universal Tester |
| Standard | BS.EN.ASTM |
| Stroke | 650mm(excluding Clamp) |
| Tester Resolution | Constant The Resolution |
| Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7 |
| Model | KJ-1066 |
| Capacity | 1, 2, 5, 10kg (optional) |
| Speed Range | 50-400mm/min adjustable, constant speed, 300mm/min |
| Test Space | 120mm MAX |
| Dimensions (W×D×H) | 50×50×120cm |
| Optional Accessories | Stretcher, air clamp |
| Control range of temperature | RT+10℃~200℃ （Customizable） |
| Controller | Programmable LCD touch screen |
| Accuracy | class 1 (0.5 optional) |
| Measuring Range | 0-100N |
| Size (H*W*D) cm | 55*30*35cm |
