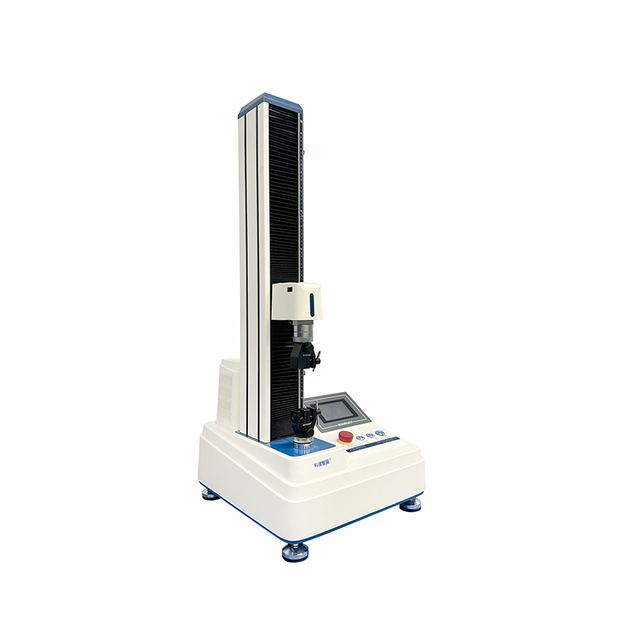

Digital High Precision Peel Force Tester for Adhesive Tape ASTM D3330
Model KJ-1065A
Overview
Digital High Precision Peel Force Tester for Adhesive Tape ASTM D3330, listed by GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong. The listing gives certification ISO, CE, capacity 1、2、5、10kg Optional and speed range 0.01～500mm/min.
Technical specifications
| Certification | ISO, CE |
|---|---|
| Application | Adhesive Tape Tester,Adhesive , Rubber,Fabric |
| Capacity | 1、2、5、10kg Optional |
| Speed Range | 0.01～500mm/min |
| Accuracy Class | 0.3 Class |
| Accuracy range | 0.5g |
| Accepted Delivery Terms | FOB, CFR, CIF, EXW, DDP |
| Force protection | system setting |
| Control | PC |
| Test Speed | 50～400mm/min adjustable,constant speed 300mm/min |
| Accuracy | ±0.5% or better |
| Power | AC220V 50Hz |
| Weight | 90kg |
