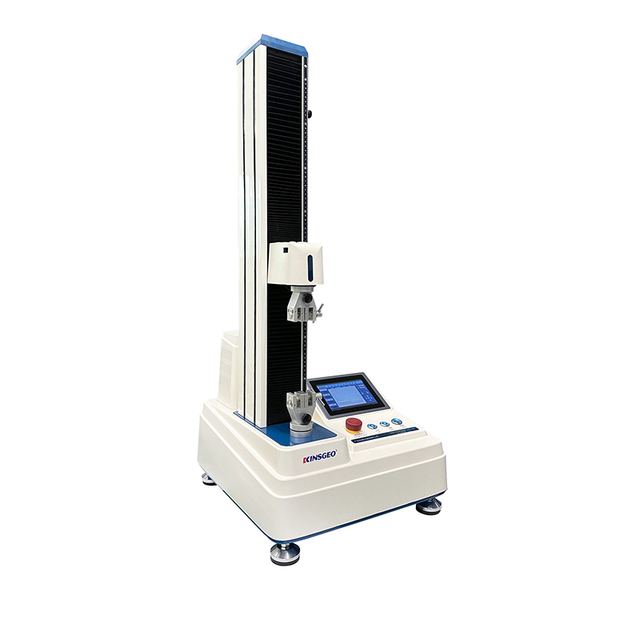

500N Peel Adhesion Test Equipment
Model KJ-1065A-N
Overview
500N Peel Adhesion Test Equipment, listed by GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong. Certification ISO,CE and etc, application Adhensive Tape,Paper Products and weight 70kg are among the specifications published.
Technical specifications
| Certification | ISO,CE and etc |
|---|---|
| Application | Adhensive Tape,Paper Products |
| Standard | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 |
| Weight | 70kg |
| Range Of Speed | 50~500mm/min |
| Power Supply | 1PH, AC220V, 50/60Hz |
| Capacity choice | 10kg |
| Stroke | 650mm(excluding clamp) |
| Effective testing space | 120mmMAX |
| Operation method | Windows operation |
| Optional accessories | stretcher, air clamp |
| Dimention | (W×D×H)58×58×125cm |
| Power | 1PH, AC220V, 50/60Hz |
| Design standard | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 |
| Force protection | system setting |
| Control range of temperature | RT+10℃~200℃ （Customizable） |
| Controller | Programmable LCD touch screen |
| Capacity | 1 , 2 , 5 , 10 kg |
| Accuracy | class 1 (0.5 optional) |
| Measuring Range | 0-100N |
| Size (H*W*D) cm | 55*30*35cm |
