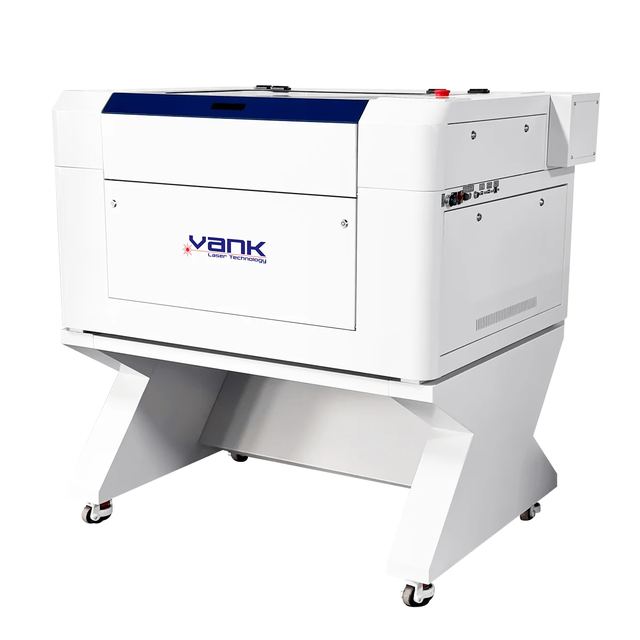

High Speed CO2 Laser Engraving Cutting Machine
Overview
High Speed CO2 Laser Engraving Cutting Machine supplied by Vank. Key published specifications: Model VankCut-6040/VankCut-7050/ VankCut-9060; Laser Power 30W 40W 60W; Working Area 600*400mm/700*500mm/900*600mm; Cooling Type Water Cooling. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | VankCut-6040/VankCut-7050/ VankCut-9060 |
|---|---|
| Laser Power | 30W 40W 60W |
| Working Area | 600*400mm/700*500mm/900*600mm |
| Cooling Type | Water Cooling |
| Max Engraving Speed | 1000mm/s |
| Max Cutting speed | 600mm/s |
| Min.Engraving Size | Chinese:2*2mm, English Letter:1*1mm |
| Highest Scanning Precision | 4000DPI |
| Locating Accuracy | ≤0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST/PLT/BMP/DWG/DXF/AI/HPGL… |
| Color Separation | Yes |
| Working Environment | Temperature:0-45C, Humidity5-95%(No Condensate Water) |
| Material | 30W |
| Acrylic | 8mm |
| Balsa wood | 5-7mm |
| Hardwood | 2.5mm |
| Hollow cardboard | 8mm |
| Medium density cardboard | 1.5mm |
| Leather【Genuine Leather】 | 2mm |
| Leather【imitation leather】 | 3mm |
| Cloth | 3mm |
| Rubber sheet | 0.6mm |
| Resin | 0.8mm |
| MDF | 2.5mm |
| Temperature | 0-45C, Humidity5-95%(No Condensate Water) |
