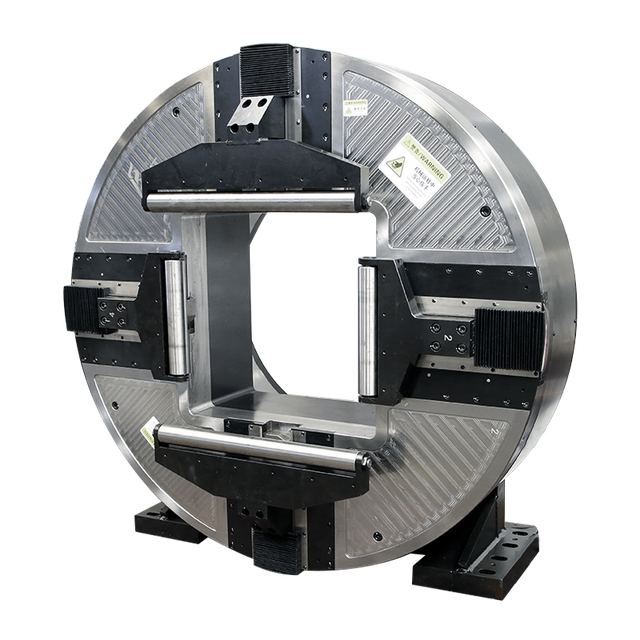

High Speed 220/230/245mm Pneumatic Rotary Laser Chuck for Precision Fiber Laser Cutting F365DF
Model F365DF
Overview
High Speed 220/230/245mm Pneumatic Rotary Laser Chuck for Precision Fiber Laser Cutting F365DF, listed by Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu. Through hole 362mm, drive type Pneumatic / Servo and repeat accuracy ≤0.05mm are among the specifications published.
Technical specifications
| Through Hole | 362mm |
|---|---|
| Drive Type | Pneumatic / Servo |
| Repeat Accuracy | ≤0.05mm |
| Rotation Accuracy | ≤0.05mm |
| Max Speed | 80 RPM |
| Working Pressure | 0.4–0.8MPa |
| Application | Round, Square, Special-Shaped Pipes |
| Center Height | 465mm |
| Stroke | 357mm |
| Allowable Pressure | 0.2-0.9Mpa |
| Limit Speed | 80R/Min |
| Clamping Range | 5-362mm |
| Max. Clamping Force | 7.5KN |
| Weight | 531KG |
