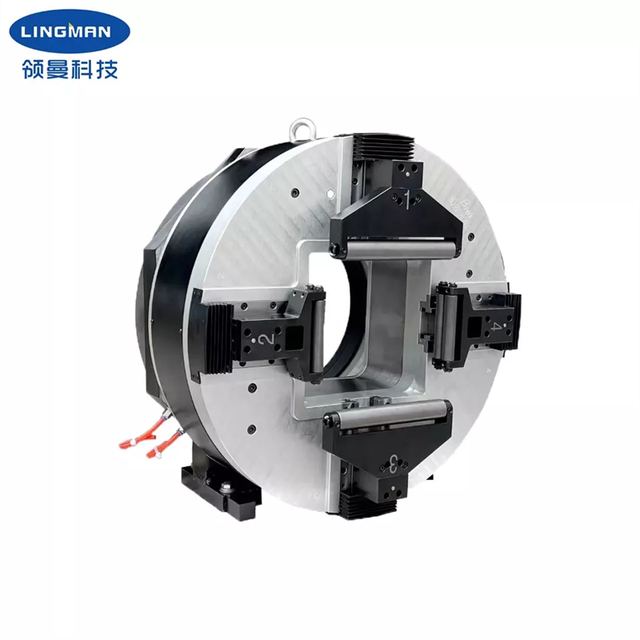

High Speed 220/230/245mm Pneumatic Rotary Laser Chuck for Precision Fiber Laser Cutting F245DF
Model F245DF
Overview
Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu lists High Speed 220/230/245mm Pneumatic Rotary Laser Chuck for Precision Fiber Laser Cutting F245DF under Laser Cutting. The listing gives through hole 245mm, drive type Pneumatic / Servo and repeat accuracy ≤0.05mm.
Technical specifications
| Through Hole | 245mm |
|---|---|
| Drive Type | Pneumatic / Servo |
| Repeat Accuracy | ≤0.05mm |
| Rotation Accuracy | ≤0.05mm |
| Max Speed | 150 RPM |
| Working Pressure | 0.4–0.8MPa |
| Application | Round, Square, Special-Shaped Pipes |
| Center Height | 315mm |
| Stroke | 242mm |
| Allowable Pressure | 0.2-0.9Mpa |
| Limit Speed | 150R/Min |
| Clamping Range | 6-242mm |
| Max. Clamping Force | 2.1KN |
| Weight | 250KG |
