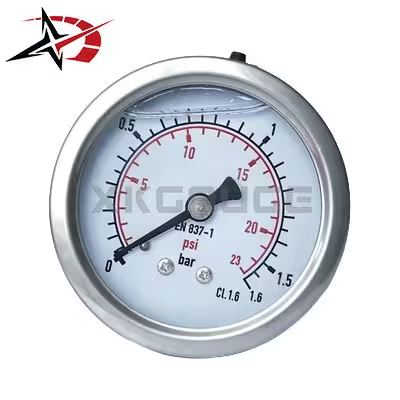

High Light
Model YN100
Overview
High Light supplied by Anhui Xingkong Instrument Co., Ltd. Key published specifications: Certification CE, ISO; Dial Size 100 mm; Pressure Range 0–15000 PSI / 0–600 MPa; Accuracy Class CL 1.0 / CL 1.6 (optional). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Dial Size | 100 mm |
| Pressure Range | 0–15000 PSI / 0–600 MPa |
| Accuracy Class | CL 1.0 / CL 1.6 (optional) |
| Standard | EN 837-1 |
| Case Material | SS304 Stainless Steel |
| Wetted Parts | SS316 Stainless Steel |
| Connection Thread | 1/4", 1/2" NPT / BSP / PT |
| Mounting Type | Bottom / Back connection |
| Filling Liquid | Silicone oil (glycerin optional) |
| Measuring Element | Bourdon tube |
| Protection Class | IP65 / IP67 optional |
| Material | 304 Stainless Steel |
| Diameter | 100mm |
| Accuracy | Class 1.0 / 1.6 |
| Fill Fluid | Silicone Oil |
| Connection | 1/4 1/2 NPT BSP PT |
| Mounting | Bottom / Back |
| Protection | IP65 / IP67 |
