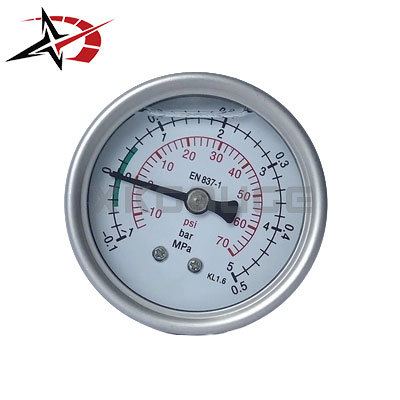

40mm Compound Liquid Filled Vacuum Gauge -1-5 Bar Dual Range for Negative Positive Pressure Systems
Model YN40
Overview
40mm Compound Liquid Filled Vacuum Gauge -1-5 Bar Dual Range for Negative Positive Pressure Systems, listed by Anhui Xingkong Instrument Co., Ltd in Anhui. The listing gives certification CE, ISO, product type Liquid Filled Pressure Gauge and measuring principle Bourdon Tube.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Product Type | Liquid Filled Pressure Gauge |
| Measuring Principle | Bourdon Tube |
| Dial Size | 40 mm (1.5 Inch) |
| Pressure Units | Bar / PSI |
| Filling Medium | Glycerin / Silicone Oil |
| Accuracy | Class 2.5 |
| Design Standard | EN 837-1 |
| Pressure Element | Copper Alloy Bourdon Tube |
| Movement | Brass |
| Connection Material | Brass |
| Case Material | Stainless Steel |
| Window Material | Polycarbonate |
| Mounting Type | Bottom Mount |
| Thread Options | BSP / PT / NPT |
| Protection Rating | IP65 |
| Pressure Range | -1~5 Bar Compound |
| Fill Medium | Glycerin / Silicone Oil |
| Connection | BSP PT NPT |
| Mounting | Bottom Mount |
| Protection | IP65 |
| Standard | EN 837-1 |
| Application | Vacuum Pump Compressor HVAC Systems |
