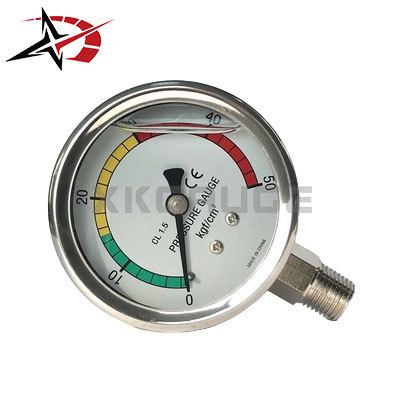

Green 60mm Liquid Filled Pressure Gauge Radial 0-50 kg/cm2 Color Zone for Safety Status Industrial Indication
Model YN60
Overview
Anhui Xingkong Instrument Co., Ltd in Anhui lists Green 60mm Liquid Filled Pressure Gauge Radial 0-50 kg/cm2 Color Zone for Safety Status Industrial Indication. The listing gives certification CE, ISO, product type Color Zone Pressure Gauge and dial size 60 mm.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Product Type | Color Zone Pressure Gauge |
| Dial Size | 60 mm |
| Pressure Range | 0–50 kg/cm² |
| Mounting Type | Radial (Bottom Connection) |
| Measuring System | Bourdon Tube |
| Filling Medium | Glycerin / Silicone Oil |
| Case Material | Stainless Steel |
| Connection Material | Brass |
| Window | Glass |
| Accuracy | Class 2.5 |
| Fill Medium | Glycerin |
| Connection | 1/4 PT |
| Mounting | Radial Bottom |
