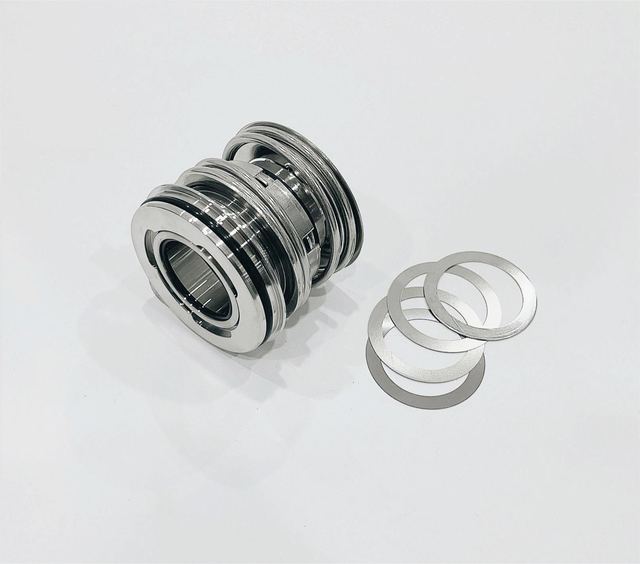

Gorman-Rupp Mechanical Seal 46513-150 (1.500) for T4 Series Pump 38272-234-1102H
Overview
Gorman-Rupp Mechanical Seal 46513-150 (1.500) for T4 Series Pump 38272-234-1102H supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001 CE; Material TC TC FKM; Function For Oil Pump, Water Pump; Type For Gorman Rupp Seal. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 CE |
|---|---|
| Material | TC TC FKM |
| Function | For Oil Pump, Water Pump |
| Type | For Gorman Rupp Seal |
| Application | Shaft Seal |
| Certificate | ISO9001 CE |
| Style | Pump Cartridge Mechanical Seal |
| Temperature | -40℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 8 bar |
| Speed | Up to 18 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Seat | Carbon, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Secondary Seal | NBR, EPDM, FKM, PTFE |
