Overview

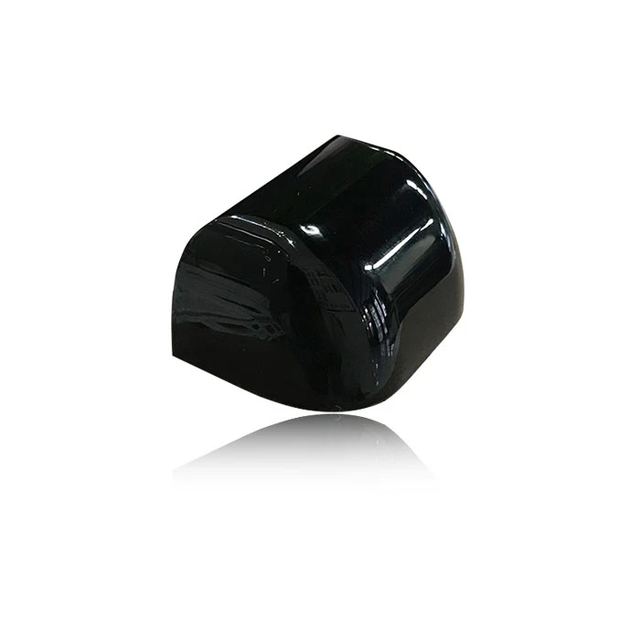

Es90 Mdu supplied by Shenzhen Winfor Canbo Technology Co., Ltd. Listed under Proximity Sensors. Key published specifications: Frequency 24.125GHz; Transmitting power <20 dBm EIRP; Launch Frequency density <5m/W/cm²; Installation height 4 meters. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Frequency	24.125GHz
Transmitting power	<20 dBm EIRP
Launch Frequency density	<5m/W/cm²
Installation height	4 meters
Adjustment angle	15-75 degree(vertical)
Detection Mode	Motion
Min detection speed	5cm/s
Power supply	AD/AC 12-30V
Standby current	22mA (DC 12V POWER)
Action current	24mA (DC 12V POWER)
Output connection point	Normally open
Output time	2 seconds
Detection range	4m*3m (Installation Height 2.8M)
Shell material	ABS plastic
Cable length	2.5 meters
External dimension	55(L)x40(W)x30(H)mm
