Overview

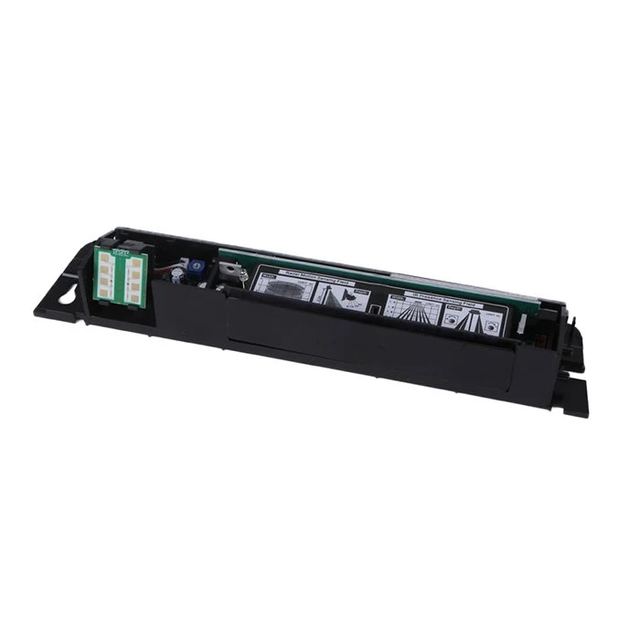

Geze Sensor supplied by Shenzhen Winfor Canbo Technology Co., Ltd. Listed under Proximity Sensors. Key published specifications: Power Input AC/DC 12 30V(-/+10%); Wire length 2.5m; Protection IP54; Signal output Relay. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Power Input	AC/DC 12 30V(-/+10%)
Wire length	2.5m
Protection	IP54
Signal output	Relay
Presence signal output	Photoelectric coupling switch
Max installation height	2500mm
Static current	65mA
Action current	130mA
Dimension	260.3（L)×53.4（W)×44(H)mm
Cover material	ABS plastic
Ray type	Reflect infrared
Ray Source	infrared 940mm
Quantity of ray	8 emit rays and 8 receive rays
Self-learning time	15s,30min optional
Working temperature	-40℃ to 60℃
Detection area	1600（W）×800（D）mm
Output holding time	0.5s
Respond	≤100ms
Optical surface	PMMA
Frequency	24.125GHz
Transmitting power	＜20dBm EIRP
Transmitting power density	＜5mW/cm 2
Detection mode	Movement
Detection area (Installation height=2.2meter)	4m(W)×2m(D)
Retention time	2s
