Overview

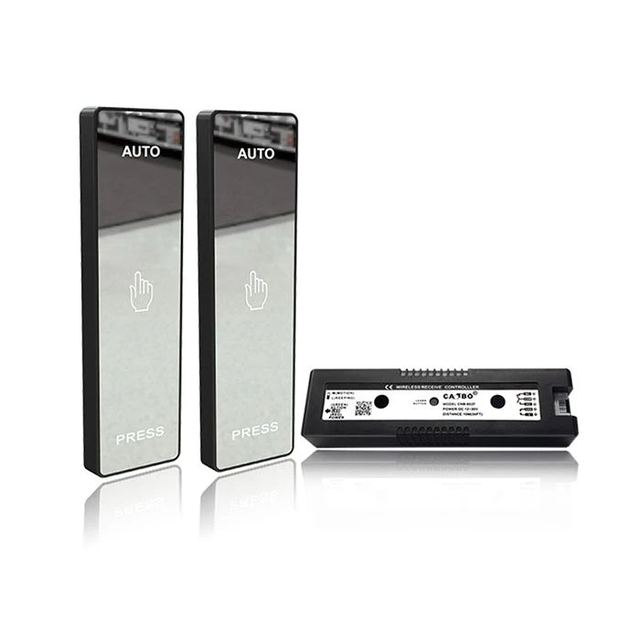

No Touch Switch supplied by Shenzhen Winfor Canbo Technology Co., Ltd. Listed under Proximity Sensors. Key published specifications: Power supply (wireless receiver) DC 12-30V; Static current 30mA(DC 12V); Action current 74mA(DC 12V); Main contact capacity (wireless receiver) 1A 24V DC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Power supply (wireless receiver)	DC 12-30V
Static current	30mA(DC 12V)
Action current	74mA(DC 12V)
Main contact capacity (wireless receiver)	1A 24V DC
Power supply (transmitter)	3V (2pcs AAA batteries )
Emission current(transmitter)	13mA
Receiver sensitivity	-95dbm
Emission distance	Over 30 meters in no obstacles area
Dimension(transmitter)	150(L)x40(W)x12.5(H)mm
Dimension(receiver)	110(L)x30(W)x15(H)mm
