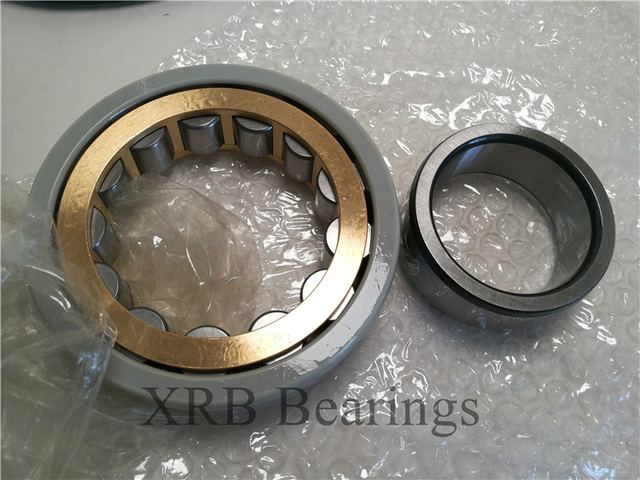

Electrically Insulated Bearing NJ219 ECM/C3VA301 with 95×170×32mm
Model 6310 M/C4VL0241
Overview
Electrically Insulated Bearing NJ219 ECM/C3VA301 with 95×170×32mm supplied by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd. Key published specifications: Designation NJ219 ECM/C3VA301; Electrical Resistance Voltages Up To 3000 V DC; Cage Brass; Cleance C3. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Designation | NJ219 ECM/C3VA301 |
|---|---|
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C3 |
| Dimension | 95×170×32 mm |
| Weight | 3.5 kg |
| Application | Electric Traction Motors |
| Certification | ISO9001 |
| Basic dynamic load rating-C | 255kN |
| Basic static load rating-Co | 265kN |
| Fatigue load limit-Pu | 0 kN |
| Reference speed | 0 r/min |
| Limiting speed | 4800 r/min |
