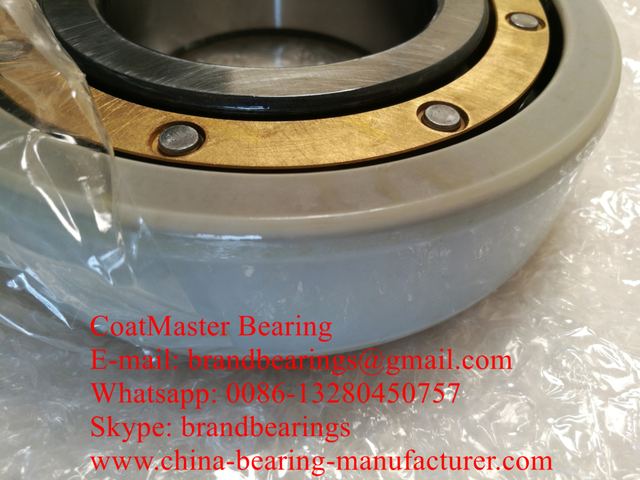

Electrically Insulated Bearing 6315 M/C4HVL0241 Internal Clearance Greater Than C4
Model 6310 M/C4VL0241
Overview
Electrically Insulated Bearing 6315 M/C4HVL0241 Internal Clearance Greater Than C4 supplied by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd. Key published specifications: Designation 6315 M/C4HVL0241; Electrical Resistance Voltages Up To 3000 V DC; Cage Brass; Cleance C4H. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Designation | 6315 M/C4HVL0241 |
|---|---|
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C4H |
| Dimension | 75×160×37 mm |
| Weight | 3.7 kg |
| Application | Electric Traction Motors |
| Certification | ISO9001 |
| Basic dynamic load rating-C | 119kN |
| Basic static load rating-Co | 76.5kN |
| Fatigue load limit-Pu | 0 kN |
| Reference speed | 0 r/min |
| Limiting speed | 5600 r/min |
| Electrically Insulated bearing used in | wheelsets and traction motors |
