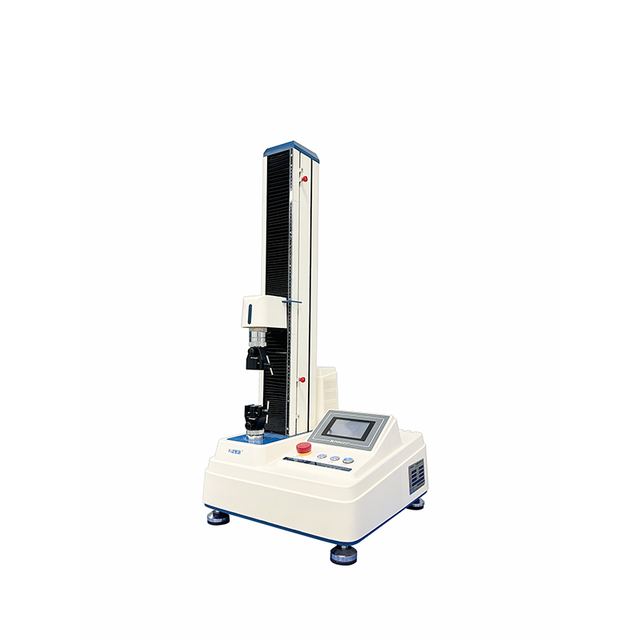

Digital Single Column Tensile Testing Equipment Lab Strength Test Machine

Model KJ-1065B-N

Digital Single Column Tensile Testing Equipment Lab Strength Test Machine

Overview

Digital Single Column Tensile Testing Equipment Lab Strength Test Machine, from GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong. The listing gives certification CE/ISO, power AC220V 50Hz and weight 80kg.

Technical specifications

CertificationCE/ISO
PowerAC220V 50Hz
Weight80kg
Power Supply220V 50Hz
ApplicationUniversal Tester
StandardBS.EN.ASTM
Capacity1.2.5.10.20.50.100.200.500kg Optional
Stroke650mm(excluding Clamp)
Tester ResolutionConstant The Resolution
Design StandardsASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
ModelKJ-1065B
Speed Range50-400mm/min adjustable, constant speed, 300mm/min
Test Space120mm MAX
DisplayWindows operation
Dimensions (W×D×H)(W×D×H) 58×58×125cm
Optional AccessoriesStretcher, air clamp
ControlPC
Test Speed50～400mm/min adjustable,constant speed 300mm/min
Accuracy±0.5% or better
