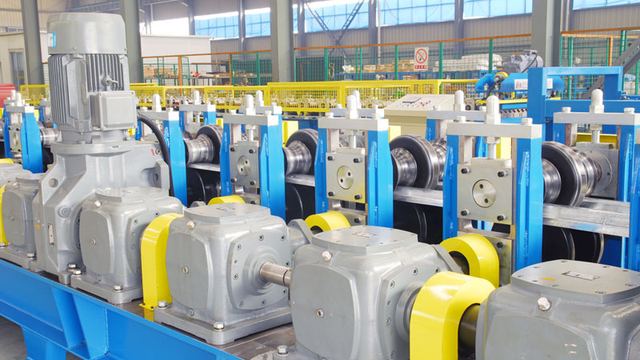

Crash Barrier Roll Forming Machine
Overview
Crash Barrier Roll Forming Machine supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Suitable material hot Rolled Steel, Galvanized Steel; Barrier Thickness 3.0 (mm); Yield Strength 230-300 (MPa); Width 482/748mm as profile requests. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Suitable material | hot Rolled Steel, Galvanized Steel |
|---|---|
| Barrier Thickness | 3.0 (mm) |
| Yield Strength | 230-300 (MPa) |
| Width | 482/748mm as profile requests |
| Machine Condition | Fully New, A Grade quality |
| Operator needed | 1-2 people |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 35t |
| Dimension | (L*W*H) about 30*6*2m |
| Equipment Color | Normally Blue/White, or as requests; |
| Forming Speed | 20m/min; line production speed 10-17m/min; 25-35 T/8 hours |
