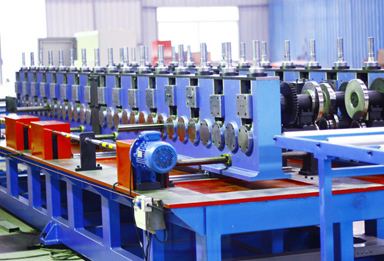

Cable Tray Roll Forming Machine
Overview
Cable Tray Roll Forming Machine supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Suitable material Galvanized Steel; Barrier Thickness 0.5-0.7/0.8-1.2 (mm); Yield Strength 230-300 (MPa); Width as profile requests. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Suitable material | Galvanized Steel |
|---|---|
| Barrier Thickness | 0.5-0.7/0.8-1.2 (mm) |
| Yield Strength | 230-300 (MPa) |
| Width | as profile requests |
| Machine Condition | Fully New, A-Grade quality |
| Operator needed | 1-2 people |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 25t |
| Dimension | (L*W*H) about 32 * 3 *2m |
| Equipment Color | Normally Blue/White, or as requests; |
| 20/min; line production speed | About 11m/min |
