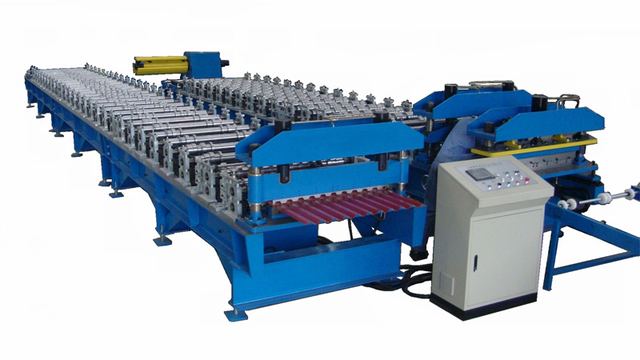

Roof Panel Roll Forming Machine
Overview
Roof Panel Roll Forming Machine supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Decoiler 5t/8t/10t/15t Motor/hydraulic motor/passive (optional); Filming covering device optional; Front shear optional; Lubricating device no need. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Decoiler | 5t/8t/10t/15t Motor/hydraulic motor/passive (optional) |
|---|---|
| Filming covering device | optional |
| Front shear | optional |
| Lubricating device | no need |
| Roll forming system | 20/30/40/50/60 m/min (optional) |
| Safety cover | optional |
| Post cutting | Motor/hydraulic (optional) |
| Output System | Manual supporter/ Automatic Stacker (optional) |
| Stackmaster | (Output direction) Lateral/Longitudinal (optional) |
| Machine Condition | Fully New, A-Grade quality |
| Operator needed | 1-2 persons |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 15t |
| Dimension | (L*W*H) about 25*3*2m |
| Loading Size | Normally need 1x 40' (+ 1x 20GP) container |
| Equipment Color | Normally Blue/White, or as requests |
| Production speed | 20/30/40/50/60 m/min optional. |
| Suitable material | Colored/ Stainless/Galvanized Steel, Aluminum sheet |
| Thickness | 0.3-0.7(mm) |
| Width | 1200/1220/1250(mm) |
