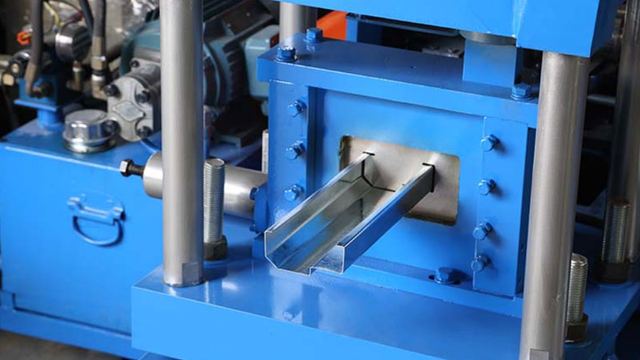

Door Frame Roll Forming Machine
Overview
Door Frame Roll Forming Machine supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Decoiler 3t/5t/8t; Roll forming system 20/30m/min; Output System Manual supporter/ Automatic Stacker (optional); Stack Master (Output direction) Lateral/Longitudinal (optional). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Decoiler | 3t/5t/8t |
|---|---|
| Roll forming system | 20/30m/min |
| Output System | Manual supporter/ Automatic Stacker (optional) |
| Stack Master | (Output direction) Lateral/Longitudinal (optional) |
| Machine Condition | Fully New, A-Grade quality |
| Operator | needed 1-2 persons |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 15t |
| Dimension | (L*W*H) about 25*3*2m |
| Equipment Color | Normally Blue/White, or as requests; |
| Suitable material | Cold/hot Rolled Steel, Galvanized Steel |
| Thickness | 0.8-1.3/1.0-1.6/1.5-2.0 (mm) |
| Width | as profile requests |
