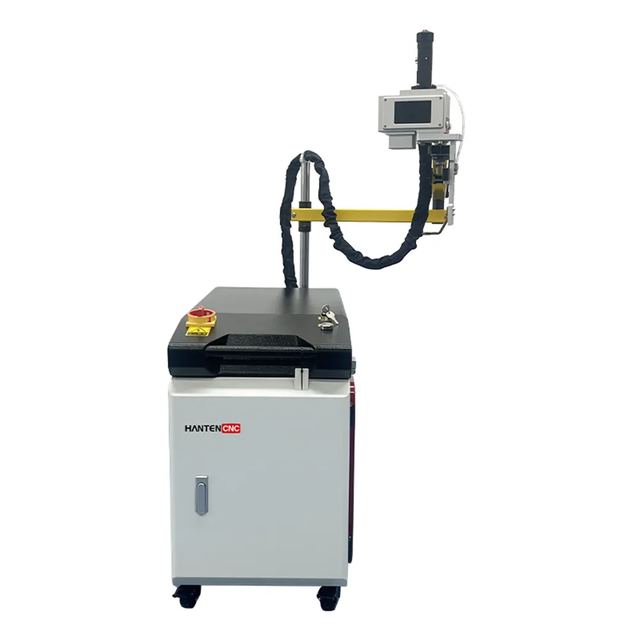

Compact 1500W Laser Welder for Small-Batch Battery Weld Repairs
Model HTW1500W
Overview
Compact 1500W Laser Welder for Small-Batch Battery Weld Repairs supplied by HANTENCNC. Key published specifications: Laser Power 1500W; Working voltage Single phase 220v AC 50/60Hz; Machine dimensions 900*400*1380mm; Machine weight 40kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Power | 1500W |
|---|---|
| Working voltage | Single phase 220v AC 50/60Hz |
| Machine dimensions | 900*400*1380mm |
| Machine weight | 40kg |
| Wavelength | 1060nm |
| Fiber cable length | 10M/12M/15M/Maximum20M |
| Modulation frequency | 5kHz |
| Welding range | 60mm*5mm |
| Maximum Oscillation Speed | 20000mm/s |
| Power dissipation | 4.5kw |
| Cooling method | Water-cooled |
