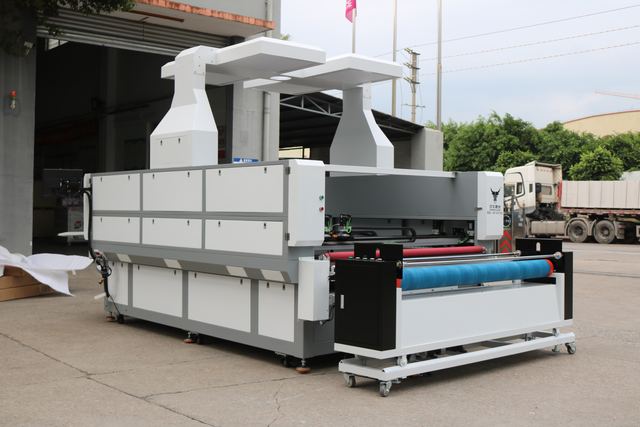

CO2 Laser Cutting Machine
Model H1810/1830/1815
Overview
CO2 Laser Cutting Machine supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Laser Type Sealed CO₂ laser tube; Cutting Speed 0 – 2000mm/s (up to 540,000mm/min); Positioning Accuracy ≤ ±0.01mm; Camera System 18–24 Megapixel DSLR / Industrial Camera. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Type | Sealed CO₂ laser tube |
|---|---|
| Cutting Speed | 0 – 2000mm/s (up to 540,000mm/min) |
| Positioning Accuracy | ≤ ±0.01mm |
| Camera System | 18–24 Megapixel DSLR / Industrial Camera |
| Recognition Accuracy | ≤ 0.05mm error rate |
| Cutting Thickness | 0 – 20mm (fabric / textile) |
| Working Area | 1600×1000mm to 3300×1500mm (customizable) |
| Laser Head | Single-Head / Dual-Head Asynchronous Cutting |
| Cooling System | Water-cooling with temperature control |
| Control Software | RDVisionWorks / JHX Professional Software / RDWorksV8 |
| Power Supply | AC 110/220V ±10%, 50/60Hz |
| Industry | Application Examples |
| Home Textiles | Curtains, carpets, upholstery fabrics |
| Standard working area options | 1600×1000mm, 1800×1000mm, 1800×1400mm, 1800×2500mm, 3300×1500mm |
