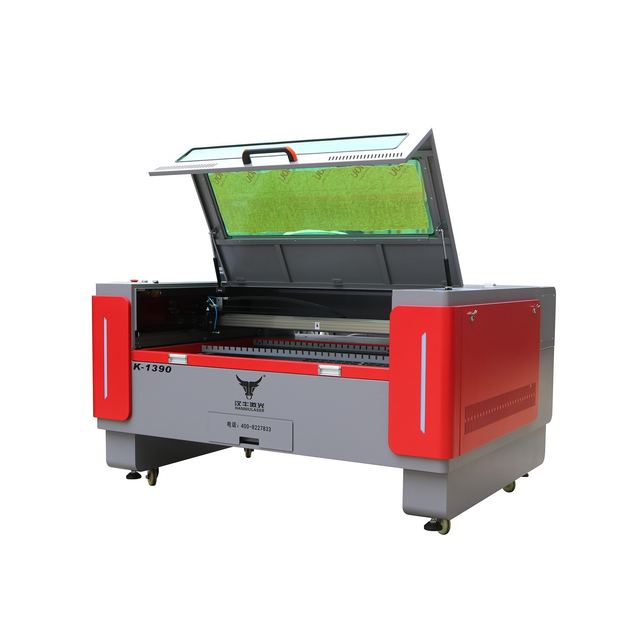

CO2 Laser Cutting Machine
Model K1390
Overview
CO2 Laser Cutting Machine supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Engraving Area 1300 x 900 mm; Laser Power 150W (CO₂ Sealed Tube); Max Engraving Speed 0 – 64,000 mm/min; Resolution 0.025 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Engraving Area | 1300 x 900 mm |
|---|---|
| Laser Power | 150W (CO₂ Sealed Tube) |
| Max Engraving Speed | 0 – 64,000 mm/min |
| Resolution | 0.025 mm |
| Min. Shaping Character | Chinese: 2mm / English Letter: 1mm |
| Repositioning Accuracy | ±0.01 mm |
| Transmission System | Linear Guide (for high stability) |
| Cooling Method | Water Cooling System |
| Gross Power | <1500W |
| Net Weight | 400 KG |
| Machine Dimensions | 1950 x 1600 x 1300 mm |
| Operating Environment | Temp: 0-45°C / Humidity: 5%-95% (non-condensing) |
| Power Supply | AC220V±10%, 50Hz/60Hz |
| Support Material | MDF Acrylic Glass Wood Plastic |
| Laser Wavelength | 10640nm |
| Positioningaccuracy | ±0.01mm |
| Repeat Position Accuracy | 0.025mm |
| Cutting Speed | 0-40000mm/min |
| Cooling Mode | Water Cooled |
| Application | Laser Cutting Engraving |
| Micro-Precision Accuracy | With a repositioning accuracy of up to ±0.01mm |
| High-Speed Engraving | Capable of speeds up to 64,000 mm/min |
