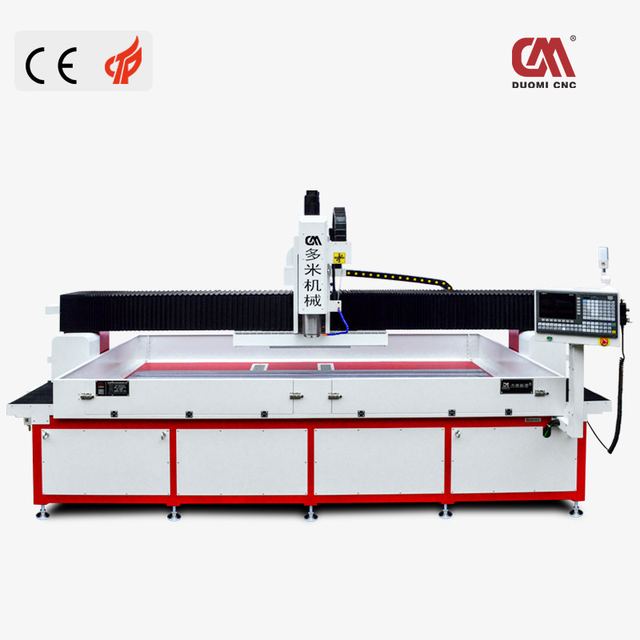

CNC Plate Sheet Drilling Machine

Model DNC-27100N10

CNC Plate Sheet Drilling Machine

Overview

Duomi (Guangdong) Intelligent Equipment Co., Ltd in Dongguan, Guangdong lists CNC Plate Sheet Drilling Machine under CNC Drilling Machines. Machine type DNC-27100N10, xyz three-axis machining stroke0 X2700mm Y1000mm Z200mm and spindle taper hole BT30 are among the specifications published.

Technical specifications

Machine typeDNC-27100N10
XYZ three-axis machining stroke0X2700mm Y1000mm Z200mm
Spindle taper holeBT30
Spindle power5.5KW
X axis moving speed30m/min~60m/min
Y axis moving speed25m/min
Z axis moving speed25m/min
Borehole diameter range1~20mm
Tapping diameter rangeM3~M18
Chamfer range1~20mm
Tool magazineServo automatic tool change (10 tools)
Repeated positioning accuracy±0.02mm
Table size2700*1000mm
Programming modeCAD file import/computer programming/manual programming
System program storage capacityAbout 10,000
System external signal controlsupport
Operating voltageAC 380V/50HZ
Machine weightApprox. 3600KG
Floor space4600*2500*1700mm
Hole Size RangeM3 – M18.
Positioning Accuracy±0.02mm.
