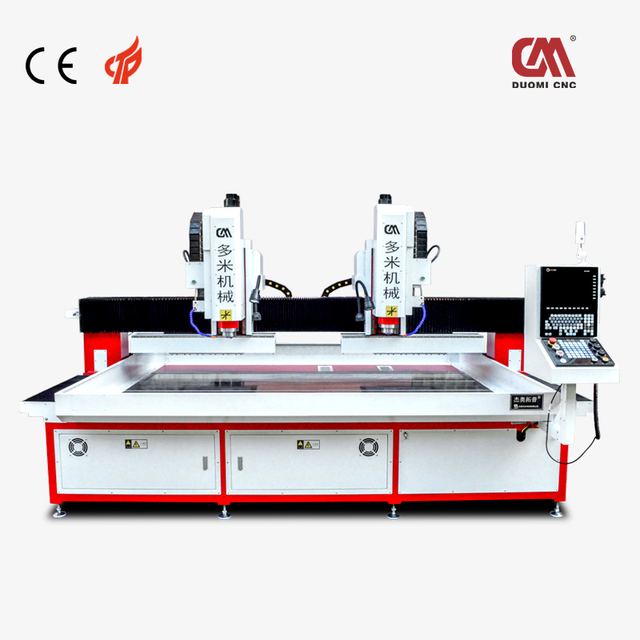

CNC gantry drilling machine

Model DNC-1226N20

CNC gantry drilling machine

Overview

CNC gantry drilling machine, listed by Duomi (Guangdong) Intelligent Equipment Co., Ltd in Dongguan, Guangdong. Machine type DNC-1226N20, xyz three-axis machining stroke0 X1600mm Y2600mm Z200mm and spindle taper hole BT30 are among the specifications published.

Technical specifications

Machine typeDNC-1226N20
XYZ three-axis machining stroke0X1600mm Y2600mm Z200mm
Spindle taper holeBT30
Spindle power5.5KW
X axis moving speed30m/min~60m/min
Y axis moving speed30m/min~60m/min
Z axis moving speed15m/min~30m/min
Borehole diameter range1~16mm
Tapping diameter rangeM3~M16
Chamfer diameter range1~20mm
Repeated positioning accuracy±0.03mm
Programming modeCAD file import/computer programming/manual programming
System program storage capacityAbout 10,000
System external signal controlsupport
Operating voltageAC 380V/50HZ
Machine weightApprox. 3600KG
Floor space2000*3800*2800mm
Hole Size RangeM3 – M16.
Positioning Accuracy±0.02mm.
Material Thickness1~20mm.
Large Worktable DesignEasily handles plates up to 1600mm × 2600mm
