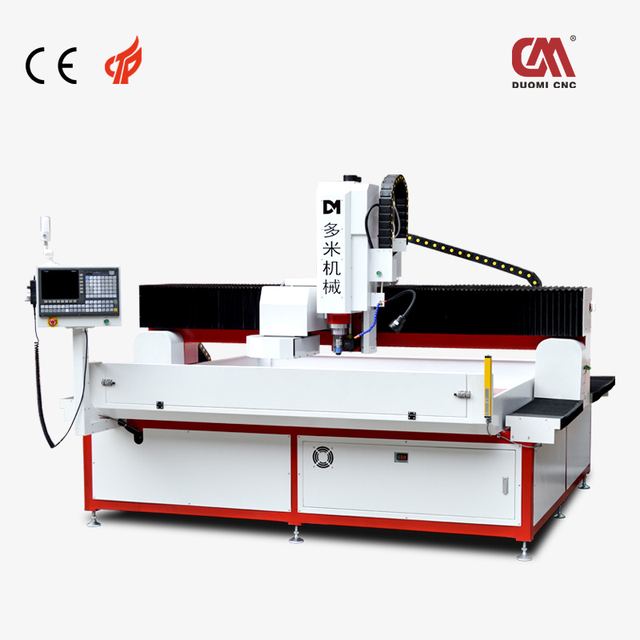

CNC Tube Sheet Drilling Machine
Model DNC-1212N10
Overview
CNC Tube Sheet Drilling Machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-1212N10; XYZ three-axis machining stroke0 X1200mm Y1200mm Z200mm; Spindle taper hole BT30; Spindle power 5.5-7.5KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-1212N10 |
|---|---|
| XYZ three-axis machining stroke0 | X1200mm Y1200mm Z200mm |
| Spindle taper hole | BT30 |
| Spindle power | 5.5-7.5KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~20mm |
| Tapping diameter range | M2~M20 |
| Chamfer range | 1~20mm |
| Tool magazine | Automatic tool change (10 knives) |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 1200*1200mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 4000KG |
| Floor space | 2000*2200*2000mm |
| Hole Size Range | M3 – M20. |
| Positioning Accuracy | ±0.01mm. |
| High Hole Accuracy | Maintains ±0.01mm precision on thick and large plates |
| Heavy-Duty Design | Built for 24/7 high-volume industrial operation |
