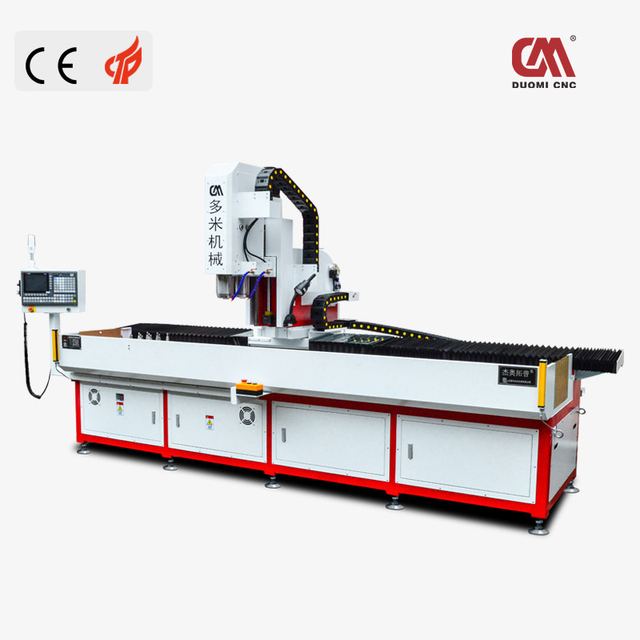

CNC Vertical Drilling Machine
Overview
CNC Vertical Drilling Machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-2430HDD; XYZ three-axis machining stroke X2400mm Y300mm Z200mm; Spindle taper hole Collet reducer sleeve; Spindle power 0.55~3.0KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-2430HDD |
|---|---|
| XYZ three-axis machining stroke | X2400mm Y300mm Z200mm |
| Spindle taper hole | Collet reducer sleeve |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 0.15~4.0mm |
| Tool magazine | Pneumatic press knife change |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 2400*280mm |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1500KG |
| Floor space | 3900*1500*1900mm |
| Model | DNC-2430DD(N6) |
| Spindle speed | 1000-60000 rpm. |
| Drilling diameter range | 0.15 ~ 4mm. |
