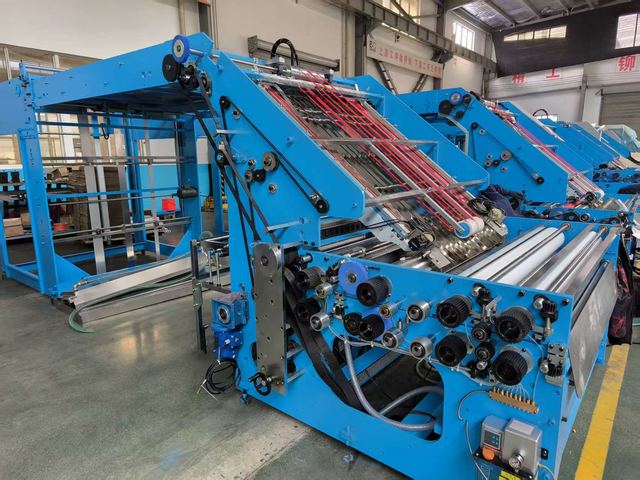

Automatic Flute Laminator Machine for High-Speed Corrugated Board

Model ZGFM-1500D/1700D

Automatic Flute Laminator Machine for High-Speed Corrugated Board

Overview

Automatic Flute Laminator Machine for High-Speed Corrugated Board supplied by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. Listed under Servo Motor. Key published specifications: Customization Supply As Customer's Demand; Finished Time About 20 Working Days; Max Working Speed 180meters/minute And 17000sheets Per Hour; Max Bottom Sheet Feeding Thickness 8-10mm Flute. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Customization SupplyAs Customer's Demand
Finished TimeAbout 20 Working Days
Max Working Speed180meters/minute And 17000sheets Per Hour
Max Bottom Sheet Feeding Thickness8-10mm Flute
Min Board Size38*40cm And 40*40cm
Stick Accuracy±1.0mm
Max Paper Size170*170cm
Power22kw, 25kw, 27KW, 30KW
Adjust TypeAutomatic By Touch Screen
Laminating TypeCorrugated+cardboard
Dimensions16300×2400×2550mm
Max Speed17000sheet/hour (180m/min)
Automatic Flute Laminator Machine1500x1500mm Corrugated Board Machine
Maximum paper size170×170cm
ApplicationPrinting and packaging factory
Bottom sheet thickness±1mm
Max paper1700*1700mm
Min paper360*400mm
production Top sheet thickness150-800g/㎡
production Speed160m/min
Machine modelZGFM-1450/1650
Cetificate typeCE and SGS
Lamination Accuracy±1mm
Top paper thickness120-800gsm
Bottom paper thickness≤10mm corrugated ≥300g cardboard
