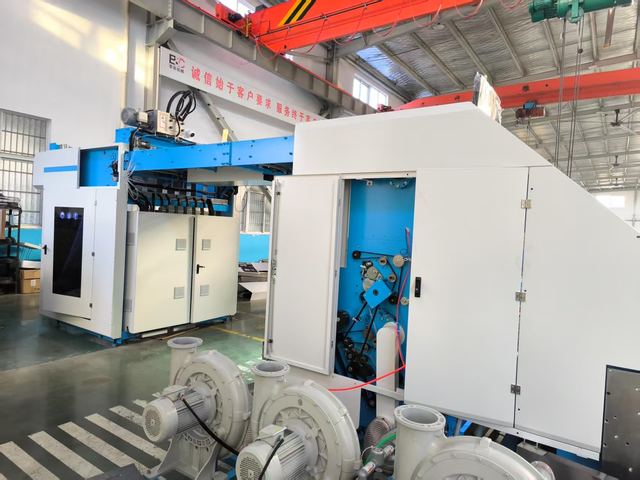

Servo-Controlled Automatic Sheet Laminating Machine for 5Ply Cardboard
Model SFC-1500/1700/1900
Overview
Servo-Controlled Automatic Sheet Laminating Machine for 5Ply Cardboard, listed under Servo Motor by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd in Anhui. The listing gives driving type Electrical Driving, down paper thickness thickness 400gsm-10mm Cardboard And FLUTE and minimum sheet size 1500: 40*45cm 1700: 45*45cm.
Technical specifications
| Driving Type | Electrical Driving |
|---|---|
| Down Paper Thickness Thickness | 400gsm-10mm Cardboard And FLUTE |
| Minimum Sheet Size | 1500: 40*45cm 1700: 45*45cm |
| Lamination Type | Cardboard+corrugator+cardboard |
| Max Material Size | 1500*1500mm And 1700*1700mm |
| Glue Roller Size | Anilox Roller 160mm Diameter |
| Automatic Flute Laminator Machine | 1500x1500mm Corrugated Board Machine |
| Max sheet size | 1900*1900mm |
| Min sheet size | 500*500mm |
| Fitting Precision | 1mm or less |
| Model | ZSD1900 |
| Bottom paper thickness | 300gsm-10mm |
| Top paper thickness | 150-800gsm |
| Top sheet thickness | 150-800g |
| Bottom sheet thickness | ≤10mm corrugated board ≥300gsm cardboard |
| min paper | 360*400mm |
| Face sheet thickness | 120-800gram printed paper or cardboard |
| Down sheet thickness | 300gram to 1cm B E F flute |
| Max lamination size | 150*150mm and 170*170cm |
