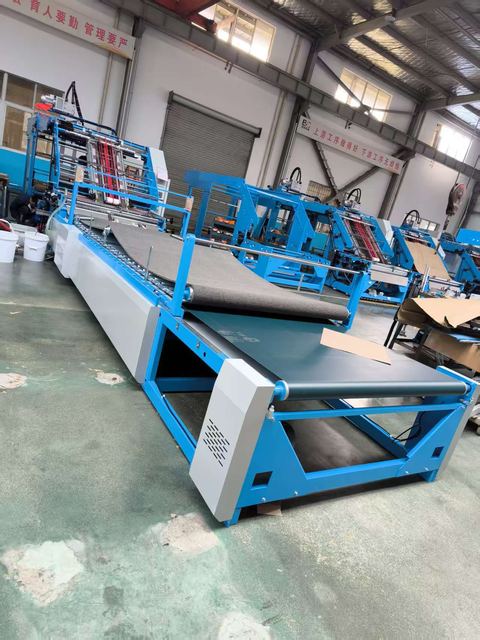

Automatic Flute Laminator Machine for Corrugated Paperboard
Model ZGFM-1500D/1700D
Overview
Automatic Flute Laminator Machine for Corrugated Paperboard, listed by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd in Anhui. Customization supply As Customer's Demand, finished time About 20 Working Days and max working speed 180meters/minute And 17000sheets Per Hour are among the specifications published.
Technical specifications
| Customization Supply | As Customer's Demand |
|---|---|
| Finished Time | About 20 Working Days |
| Max Working Speed | 180meters/minute And 17000sheets Per Hour |
| Max Bottom Sheet Feeding Thickness | 8-10mm Flute |
| Min Board Size | 38*40cm And 40*40cm |
| Stick Accuracy | ±1.0mm |
| Max Paper Size | 170*170cm |
| Power | 22kw, 25kw, 27KW, 30KW |
| Adjust Type | Automatic By Touch Screen |
| Laminating Type | Corrugated+cardboard |
| Dimensions | 16300×2400×2550mm |
| Max Speed | 17000sheet/hour (180m/min) |
| Automatic Flute Laminator Machine | 1500x1500mm Corrugated Board Machine |
| Maximum paper size | 170×170cm |
| Application | Printing and packaging factory |
| Bottom sheet thickness | ±1mm |
| Max paper | 1700*1700mm |
| Min paper | 360*400mm |
| production Top sheet thickness | 150-800g/㎡ |
| production Speed | 160m/min |
| Machine model | ZGFM-1450/1650 |
| Cetificate type | CE and SGS |
| Lamination Accuracy | ±1mm |
| Top paper thickness | 120-800gsm |
| Bottom paper thickness | ≤10mm corrugated ≥300g cardboard |
